Device description
3D view¶
Description of communication, input/output and control¶
Communication interfaces¶
- Ethernet 100/1000 Mb/s with UDP protocol, designed for parameter recording, monitoring, testing, but also online control;
- CAN bus protocol can be modified according to customer requirements;
- Ethernet 100/1000 Mb/s with optional protocol, programmed in the gate array and designed for connection of fast industrial buses for real-time control. Currently, this interface is equipped with the EtherCAT protocol (only for standard firmware); according to customer requirements it can be modified to another type of protocol.
- RS422 or RS485, data transfer via unused servomotor feedback interface. It can be used for communication with devices based on RS422 or RS485 standard (encoder, gyro, master controller, other system, etc.). This interface enables high-speed communication up to 20Mbit/s.
Inputs / outputs¶
The built-in TGZ servo amplifiers have 8 isolated digital inputs, 3 digital inputs, 6 isolated digital outputs, 1 analog input and 2 PT1000 thermistor inputs implemented. It is possible to control these inputs and outputs using a user program (C language):
| I/O | Type | Count | Value |
|---|---|---|---|
| input | analog | 1 | 0-10 V |
| input | thermistor | 2 | standard PT1000 |
| input | digital | 3 | 0-30 VDC (0-0.8 V low / 2.4-30 V high) |
| input | isolated digital | 8 | 0-24 VDC (0-10 V low / 13-24 V high), 10 mA |
| output | isolated digital | 6 | 5-24 VDC, 300 mA / max. output |
The servo amplifier has four feedback connectors, which have a wide range of uses. In addition to motor feedback, they can be used to connect devices operating on the principle of the RS422 or RS485 standard.
| Type | Standard | Interface | Examples of Possible Connected Devices |
|---|---|---|---|
| FB1 | RS422/RS485 | Hiperface DSL, EnDat 2.2, SSI, BISS | Absolute magnetic/optical encoder, incremental magnetic/optical encoder with Hall sensors 2, gyroscope |
| FB2 | RS422/RS485 | Hiperface DSL, EnDat 2.2, SSI, BISS | Absolute magnetic/optical encoder, incremental magnetic/optical encoder with Hall sensors 2, gyroscope |
| FE1 | RS422/RS485 | Hiperface DSL, EnDat 2.2, SSI, BISS | Absolute magnetic/optical encoder, incremental magnetic/optical encoder with Hall sensors 2, gyroscope |
| FB31 | 2 × full-duplex RS422 | - | Control system |
- Hiperface DSL – digital communication, sensors are manufactured with a resolution of 15 to 24 bits per revolution (multi-speed design – 4,096 revolutions). This type of feedback is used for motors with a single connector or cable.
- EnDat 2.2 – digital communication, sensors are manufactured with a resolution of 18 to 25 bits per revolution (multi-speed design – 4,096 revolutions).
- SSI – encoders with synchronous system interface.
- BISS – sensors with BISS-C protocol.
Control¶
TGZ servoamplifiers can be controlled:
- digital control via EtherCAT, CAN-bus (torque, speed, position profiles, etc.) and via Ethernet UDP protocol;
- via user program (language C) – digital inputs, analog voltage, etc.
Connectors¶

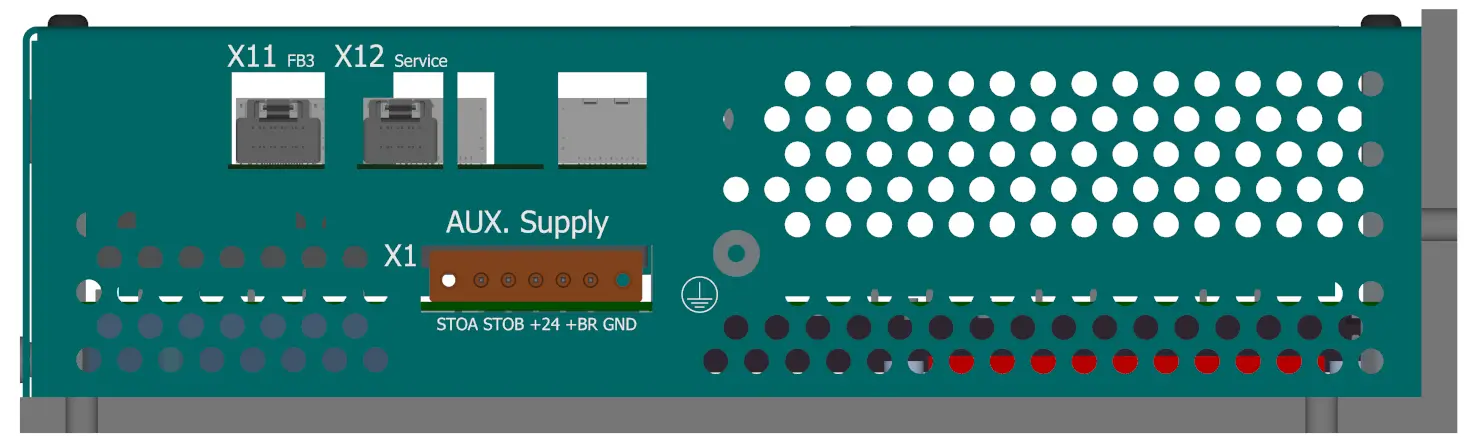

View of the ethnernet side¶
-
X1 - Control supply voltage
Housing back side view (wire side):
-
Weidmüller BCZ 3.81/05/180F SN OR BX
pin # Marking Description AWG 1 STO_A STO channel A 16 2 STO_B STO channel B 16 3 VCC +24V control supply 16 4 VCC_BR +24V brake supply 16 5 GND GND (0 V) 16 EMI suppression
Please pay attention to the installation of the suppression toroidal core according to the instructions.
-
X11 - Feedback 3 - RS422
-
Molex ClikMate 5031491000 - recommended crimping contacts Molex 502579 1
pin # Marking Description 1 TxD- RS422 #1 Transmit data - 2 TxD+ RS422 #1 Transmit data + 3 RxD- RS422 #1 Recieve data - 4 RxD+ RS422 #1 Recieve data + 5 +12 VDC OUT output +12V 6 GND Common GND 7 TxD+ RS422 #2 Transmit data + 8 TxD- RS422 #2 Transmit data - 9 RxD+ RS422 #2 Recieve data + 10 RxD- RS422 #2 Recieve data - Warning
When using this type of feedback, make sure you are using the appropriate TGZ firmware that supports these features.
-
X12 - Ethernet UDP - service
-
Mo lex ClikMate 5031490800 - recommended crimping contacts Molex 502579 1
pin # Marking Description 1 DD+ T568B pair D positive (Bn-Wh) 2 DD- T568B pair D negative (Bn) 3 DC- T568B pair C negative (Bl-Wh) 4 DC+ T568B pair C positive (Bl) 5 DB- T568B pair B negative (Gn) 6 DB+ T568B pair B positive (Gn-Wh) 7 DA+ T568B pair A positive (Or-Wh) 8 DA- T568B pair A negative (Or)

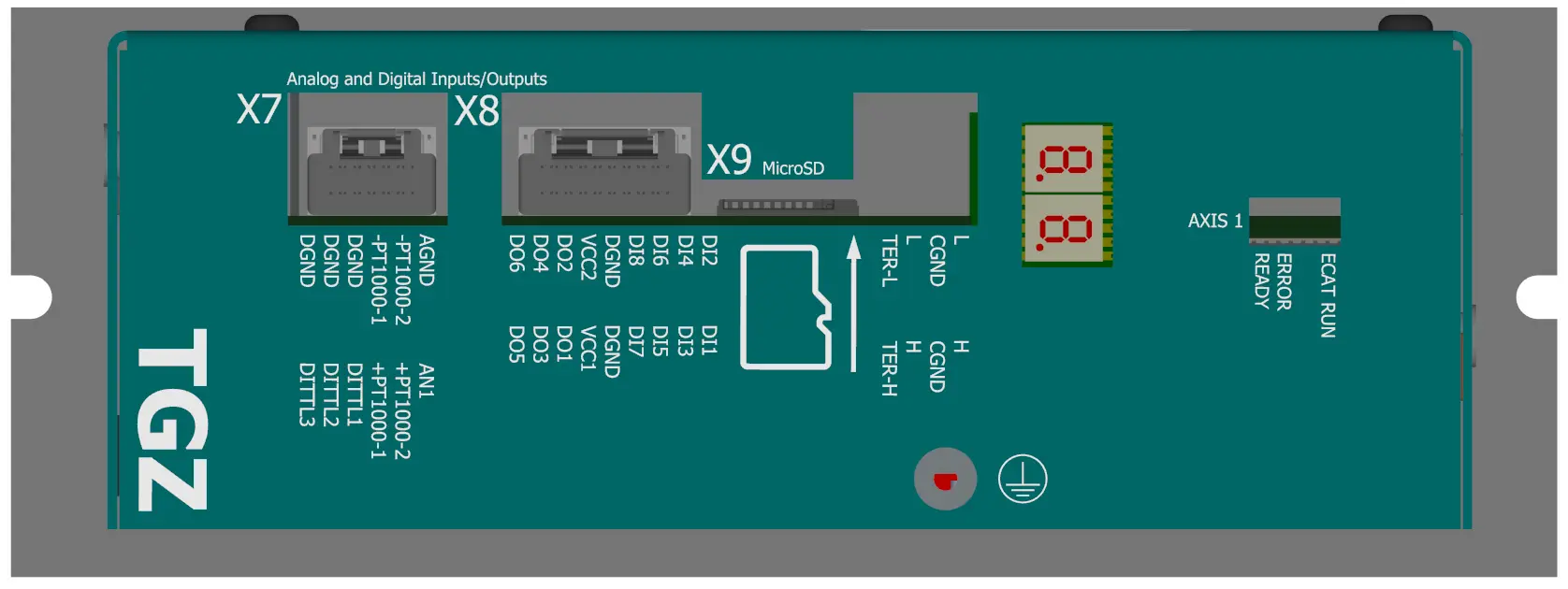

View of the IO/SD Side¶
-
X7 - Digital inputs + Analog inputs
-
Molex ClikMate 5031491200 - recommended crimping contacts Molex 502579 1
pin # Marking Description 1 AIN Analog input 0-10V 2 AGND Analog ground 3 PT1000_2+ input for 2. PT1000 4 PT1000_2- input for 2. PT1000 5 PT1000_1+ input for 1. PT1000 6 PT1000_1- input for 1. PT1000 7 DITTL1 Dig. input 5-30V 8 DGND Digital ground 9 DITTL2 Dig. input 5-30V 10 DGND Digital ground 11 DITTL3 Dig. input 5-30V 12 DGND Digital ground Warning
Direct PT1000 inputs of X7 pins 3-6 are only available on control board from batch supplied after 06-2024 onwards. Older versions of the device have standard AIN1, AIN2 and AIN3 on pins 1-6 of X7. For further details of the previous device properties please see older version of this manual.
-
X8 - Digital I/O
-
Molex ClikMate 5031491800 - recommended crimping contacts Molex 502579 1
pin # Marking Description 1 DI1 Digital input isolated no. 1 2 DI2 Digital input isolated no. 2 3 DI3 Digital input isolated no. 3 4 DI4 Digital input isolated no. 4 5 DI5 Digital input isolated no. 5 6 DI6 Digital input isolated no. 6 7 DI7 Digital input isolated no. 7 8 DI8 Digital input isolated no. 8 9 GNDIO Isolated power ground 10 GNDIO Isolated power ground 11 VDDIO Isolated PSU DO 24V 12 VDDIO Isolated PSU DO 24V 13 DO1 Digital output isolated no. 1 14 DO2 Digital output isolated no. 2 15 DO3 Digital output isolated no. 3 16 DO4 Digital output isolated no. 4 17 DO5 Digital output isolated no. 5 18 DO6 Digital output isolated no. 6 Please see details about digital inputs DI1-8 and digital outputs DO1-6 in the Common hardware section.
-
X9 - MicroSD slot
-
It is not primarily recommended to use the microSD slot in devices where significant vibrations are expected. SD card is not included with the "RI" version of servoamplifiers. For more information, see SD cards.
-
LED display
-
LED display indicates the status of the servoamplifier. See TGZ status indicators for detailed description.
-
status LEDs
-
LED diodes
LED color Status green Servo OK red Servo Error A complete description of the meaning of the status LEDs can be found here: TGZ status indicators
View of the FB/motor side¶
-
X4 - External encoder (FBE)
-
Molex ClikMate 5031491200 - recommended crimping contacts Molex 502579 1
pin # Endat 2.2/SSI/BISS Hiperface DSL Incremental encoder RS422, RS485 1 +12 V DSL+ +12 V - 2 GND DSL- GND - 3 MA+ (CLK+) - B+ TxD+/RxD+ 4 MA- (CLK-) - B- TxD-/RxD- 5 SLO+ (DATA+) FBSEL+ A+ TxD+/RxD+ 6 SLO- (DATA-) FBSEL- A- TxD-/RxD- 7 - FBSEL+ - - 8 - FBSEL- - - 9 ZERO+ - Z+ RxD+ 10 ZERO- - Z- RxD- 11 +5V +5V +5V +5V 12 GND GND GND GND For more information on external feedback, see FBE Feedback.
-
X5 - Feedback axis 1
-
Molex ClikMate 5031491000 - recommended crimping contacts Molex 502579 1
pin # Endat 2.2/SSI/BISS Hiperface DSL Incremental encoder RS422, RS485 1 +12 V DSL+ +12 V +12 V 2 GND DSL- GND GND 3 MA+ (CLK+) - B+ TxD+/RxD+ 4 MA- (CLK-) - B- TxD-/RxD- 5 SLO+ (DATA+) FBSEL+ A+ TxD+/RxD+ 6 SLO- (DATA-) FBSEL- A- TxD-/RxD- 7 - FBSEL+ - - 8 - FBSEL- - - 9 +5V +5V +5V +5V 10 GND GND GND GND For more information regarding Feedback 1, please see Feedback FB1, FB2.
Warning
In order to use Hiperface DSL feedback user must tie pins 5-7 and 6-8 together of the FB1 (and FB2 respectively) connector or assembly appropriate shorting resistors to the control PCB. This applies from batch supplied after 06-2024 onwards, where no internal connection is done on DSL as a standard. Also check whether you have correct firmware uploaded in the device.
-
X6 - Feedback axis 2
-
Molex ClikMate 5031491000 - recommended crimping contacts Molex 502579 1
pin # Endat 2.2/SSI/BISS Hiperface DSL Incremental encoder RS422, RS485 1 +12 V DSL+ +12 V +12 V 2 GND DSL- GND GND 3 MA+ (CLK+) - B+ TxD+/RxD+ 4 MA- (CLK-) - B- TxD-/RxD- 5 SLO+ (DATA+) FBSEL+ A+ TxD+/RxD+ 6 SLO- (DATA-) FBSEL- A- TxD-/RxD- 7 - FBSEL+ - - 8 - FBSEL- - - 9 +5V +5V +5V +5V 10 GND GND GND GND For more information regarding Feedback 2, please see Feedback FB1, FB2.
Warning
In order to use Hiperface DSL feedback user must tie pins 5-7 and 6-8 together of the FB1 (and FB2 respectively) connector or assembly appropriate shorting resistors to the control PCB. This applies from batch supplied after 06-2024 onwards, where no internal connection is done on DSL as a standard. Also check whether you have correct firmware uploaded in the device.
Note
Servoamplifier TGZ-S-400 is single axis version. The X6 connector is not normally connected.
-
X3.1 - Motor connector
-
Weidmüller BLZ 7.62HP/06/180F
pin # Marking Description AWG 1 -B - Brake 13-24 2 +B + Brake 13-24 3 PE protect earth 13-24 4 W Phase W 13-24 5 V Phase V 13-24 6 U Phase U 13-24 Connector orientation
Pay attention to the correct orientation of the connector when connecting the wiring.
-
X2 - Power supply voltage
The X2 connector comes with jumper wires prepared for use with the internal chopper resistor.
If an external chopper (brake) resistor is used, the jumper wires must be removed and the resistor connected according to the schematic.
-
Weidmüller BLZ 7.62HP/12/180F
pin # Marking Description AWG 1 PE protect earth 11-24 2 L1 Phase 1 11-24 3 L2 Phase 2 11-24 4 L3 Phase 3 11-24 5 RBin Internal regen. resistor 11-24 6 SEL Regen. res. selection 11-24 7 RBex external regen. resistor 11-24 8 +DC + DCbus supply 11-24 9 -DC - DCbus supply 11-24 10 PE protect earth 11-24 11 T+ +Thermistor 11-24 12 T- -Thermistor 11-24
