TwinCAT and TGZ

  • Use the newest EtherCAT XML file for TGZ and copy it to the TwinCAT folder (TwinCAT\3.1\Config\Io\EtherCAT).
  • Create a new project\
  • Connect TGZ to the EtherCAT network
  • Set the D-Mode register of the TGZ servo amplifier to 3 (position mode). Do this for the first or both axes (TGZ-D drive version). Save the settings if necessary.

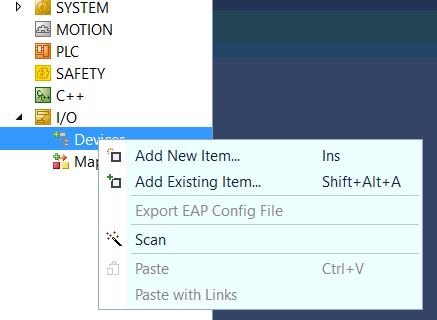

  • Use the Scan command in the context menu of I/O | Devices

TwinCAT

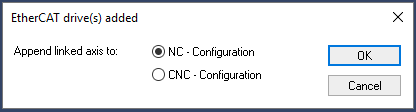

  • Append the drive to the NC-Configuration

TwinCAT

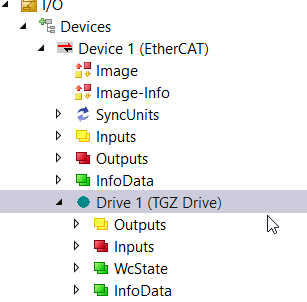

  • Double-click on the TGZ Drive entry in the device tree to open the properties window.

TwinCAT

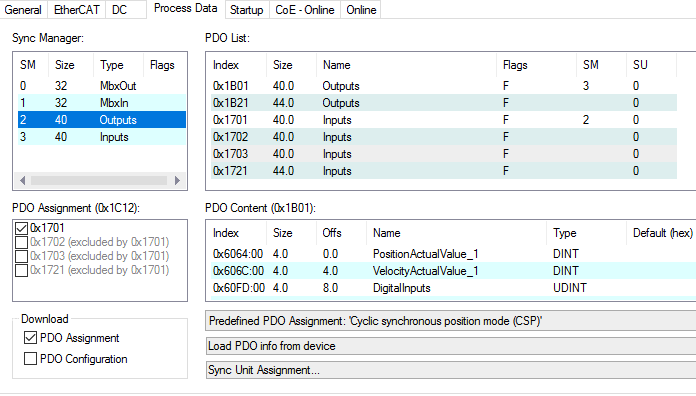

  • PDOs can be observed and changed in the Process Data tab. The image below displays the settings for CST mode.

TwinCAT

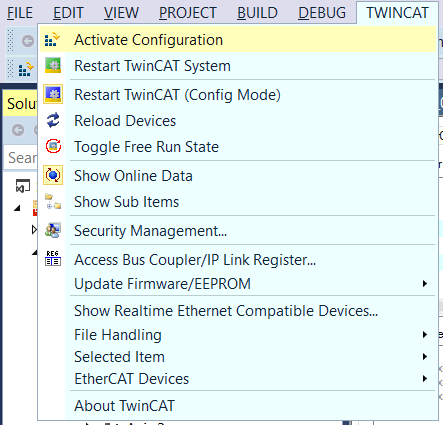

  • When the setup is complete, activate the configuration.

TwinCAT

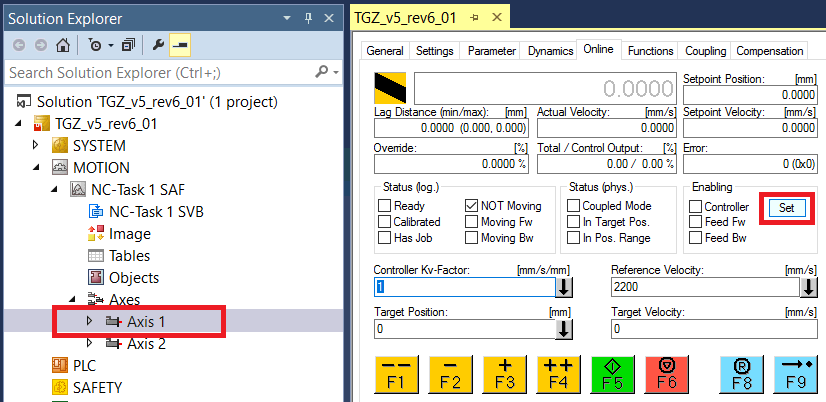

  • Use the tree item MOTION | NC-Task 1 SAF | Axes | Axis 1 to display all axis properties. Select the Online tab and then click on the Set button.

TwinCAT

  • Enable all checkboxes by clicking on the All button.

TwinCAT

  • The axis should now be enabled and ready for movement in cyclic synchronous positioning mode (CST). If needed, use the red F6 button to reset the error and/or the blue F8 button to reference the axis.
  • As described in the chapter PDO mapping and TGZ drive variants, the PDO values are the same for the single and double axis TGZ versions. Therefore, when using the TGZ-S variant in TwinCAT, Axis 2 will not be usable and must be ignored.

Cyclic Synchronous Velocity (CSV) Mode Setup

  • Use the TwinCAT configuration mode

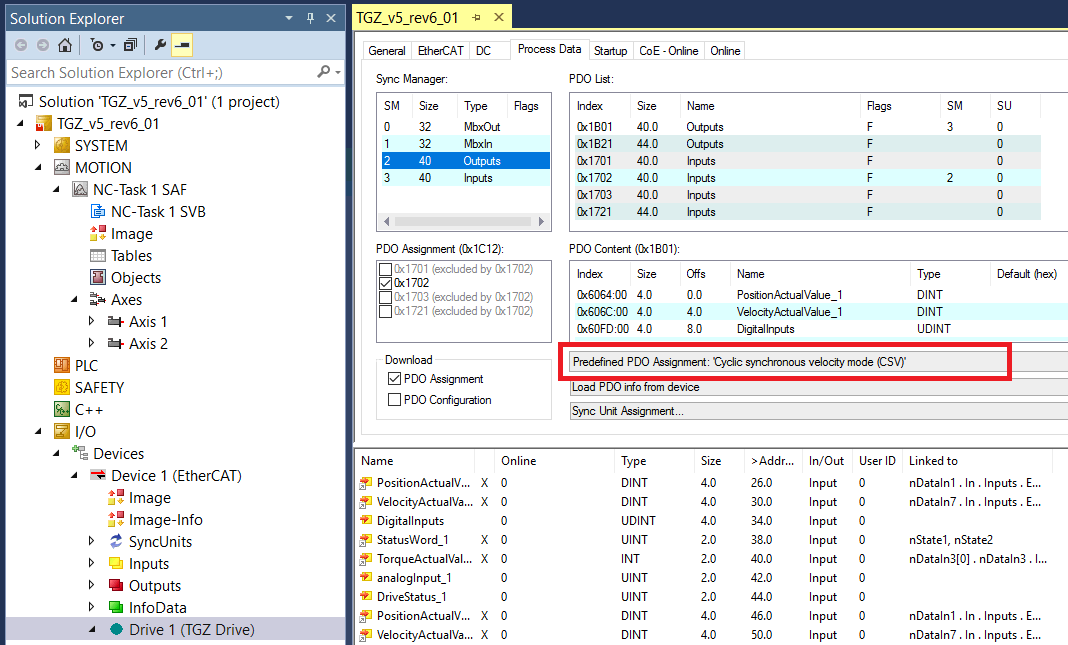

  • Activate the Process Data tab of the TGZ drive and select the Cyclic synchronous velocity mode (CSV) item in the combo box.

TwinCAT

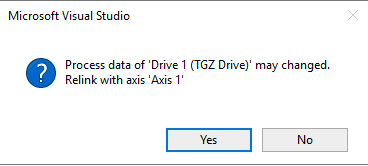

  • Reconnect the axis data by clicking Yes in the following dialog box.

TwinCAT

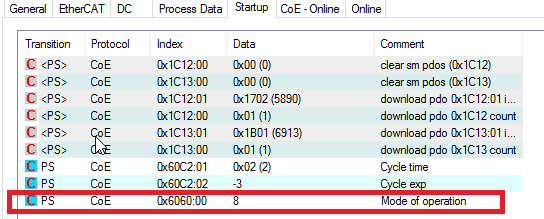

  • Activate the Startup tab and change the value of the object 0x6060:00 (Mode of operation). Double-click on this item.

TwinCAT

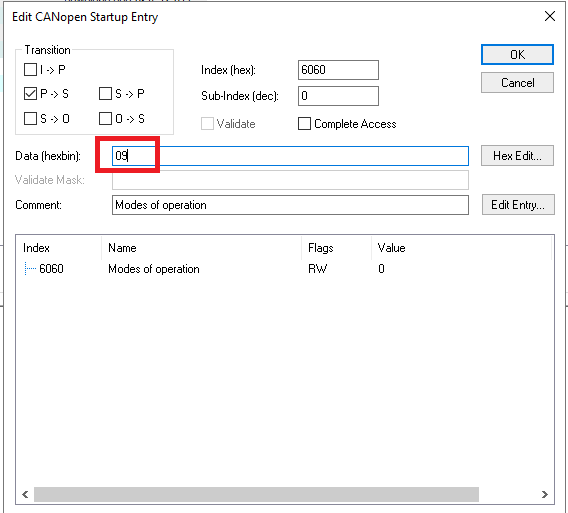

  • In the following dialog box, change the Data value to 09 and click OK.

TwinCAT

  • If necessary, do the same for the second axis (0x6860:00).
  • Remember to set the appropriate TGZ drive mode (D-Mode register) as described in the chapter Modes of Operation 0x6060.
  • Activate the configuration and switch to Run mode. TwinCAT will now use the speed regulator to perform motion. Properly setting the regulator parameters is essential for achieving smooth positioning.
