Device description

3D view

3D view IO side

3D view FB side

Connectors

Power connectors side

PWR connections

  • X1 - Mains connector

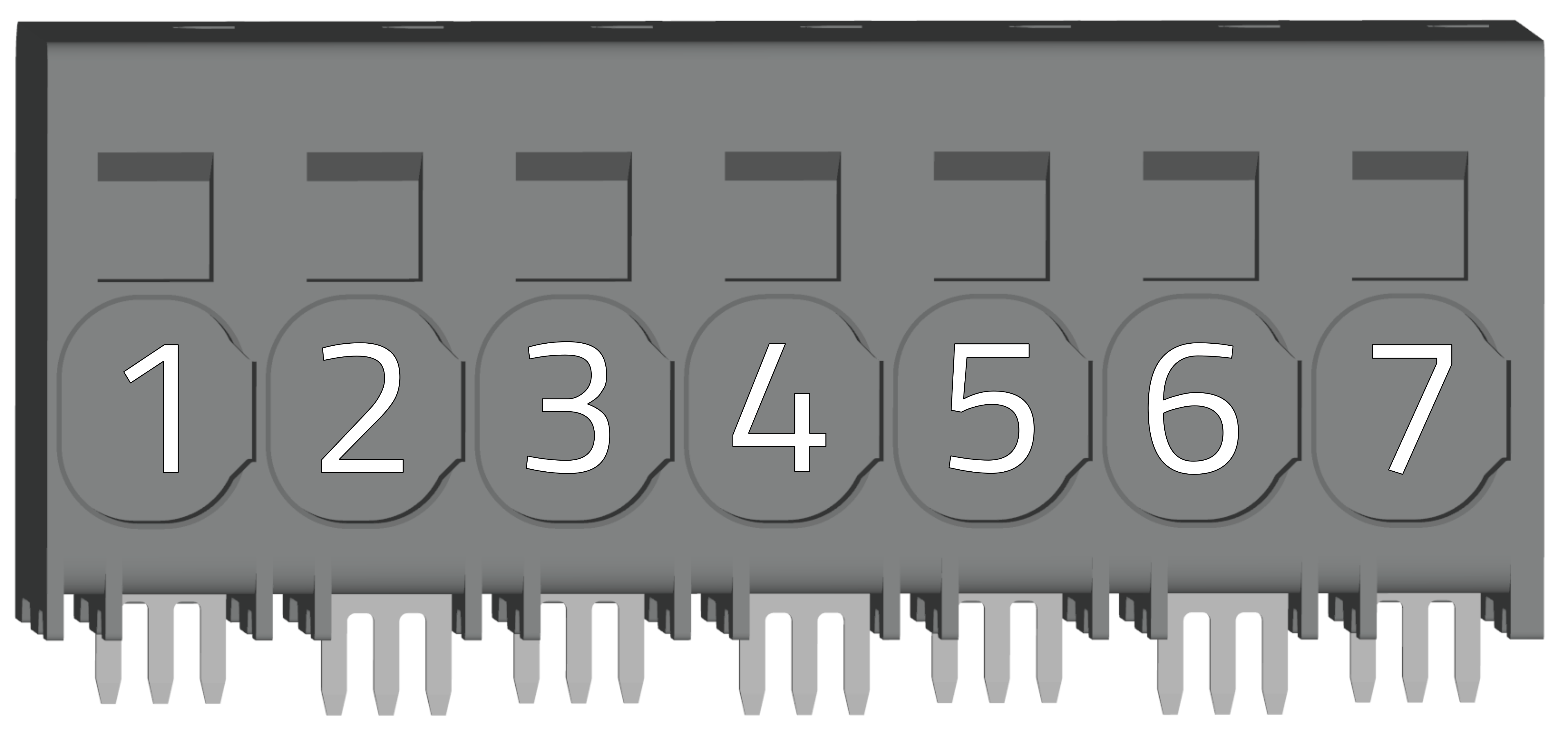

    PWR connector

  • Wago 2636-1107

    pin # Marking Description AWG
    1 RBex External regen. resistor 18 ~ 4
    2 SEL Regen. resistor select 18 ~ 4
    3 RBin Internal regen. resistor 18 ~ 4
    4 L1 Phase 1 18 ~ 4
    5 L2 Phase 2 18 ~ 4
    6 L3 Phase 3 18 ~ 4
    7 PE Ground 18 ~ 4

  • X4 - DC bus connector

    ENET/ECAT/LogicPWR connectors

  • Screw terminals M8

    pin # Marking Description AWG
    1 -DC OUT + DC bus output according to cable ring
    2 +DC OUT - DC bus output according to cable ring

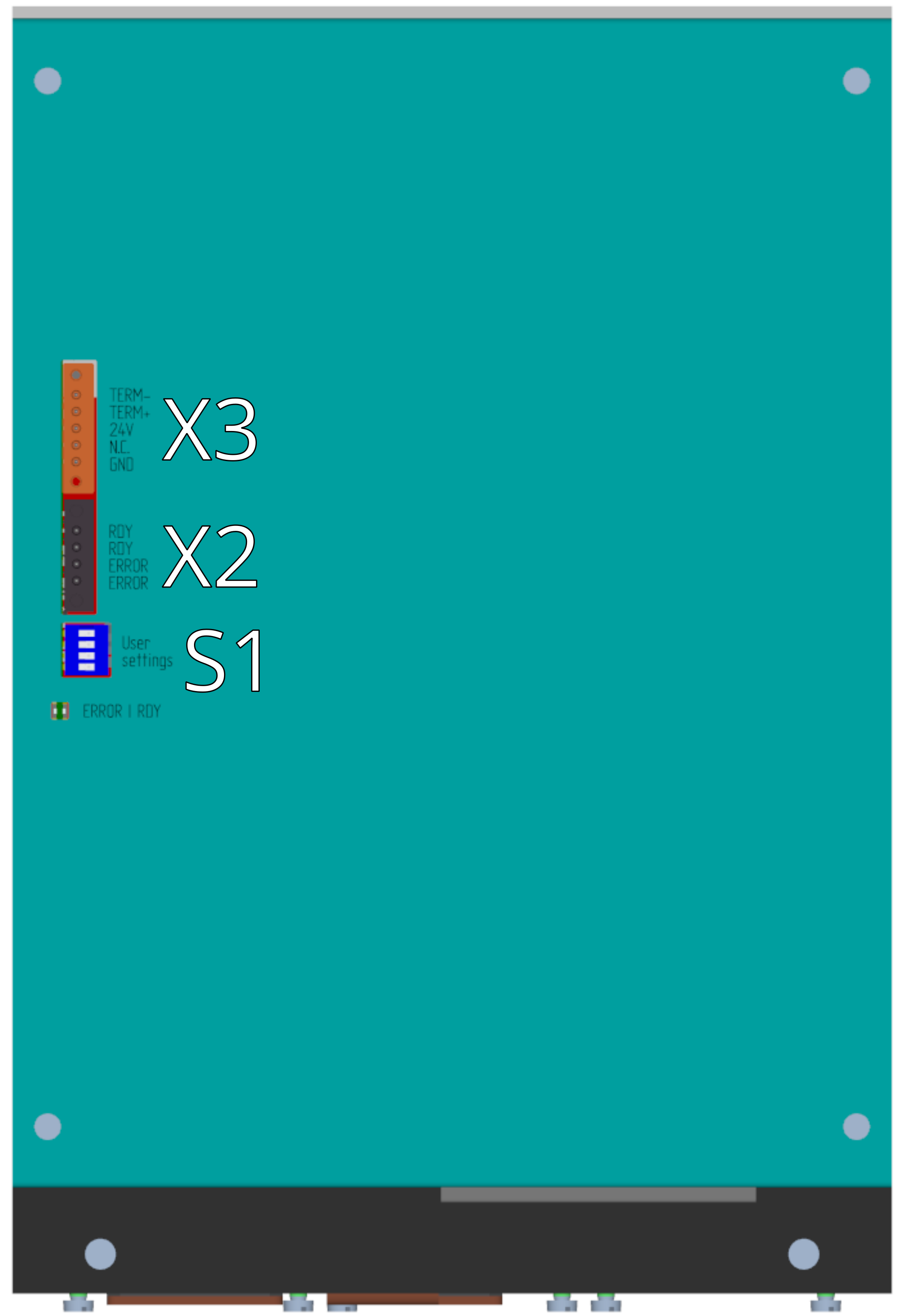

Logic power, control outputs side

Motor/Feedback connectors

  • X3 - Logic power connector

    24V connector

  • Weidmüller BCZ 3.81/05/180F SN OR BX

    pin # Marking Description AWG
    1 TERM1 Thermistor input 1 (positive) 16~28
    2 TERM2 Thermistor input 2 (negative) 16~28
    3 VCC +24V logic power 16~28
    4 NC NC 16~28
    5 GND GND (0 V) 16~28

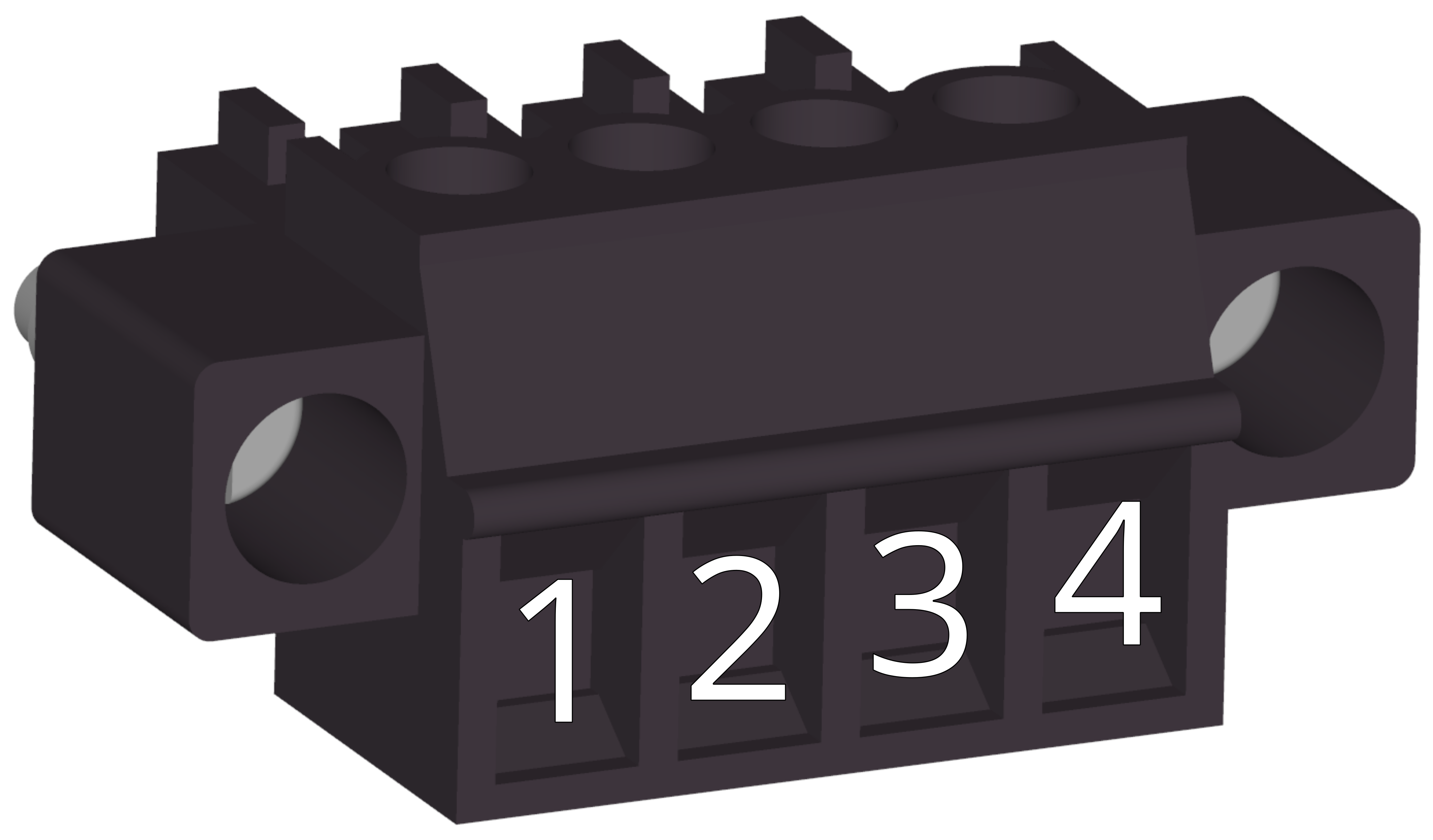

  • X2 - Control outputs connector

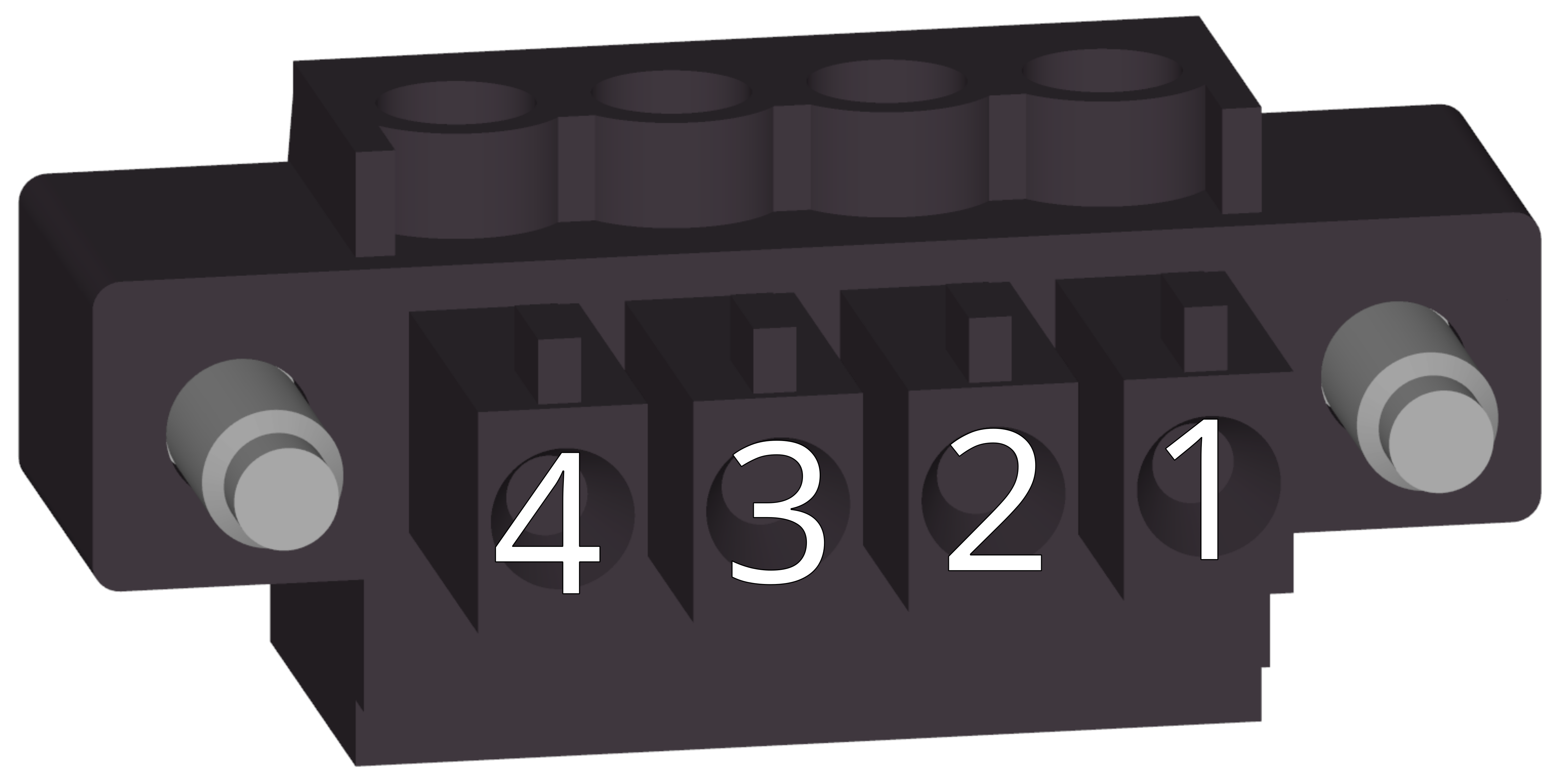

    Rear view (cable side)

    DO DO1

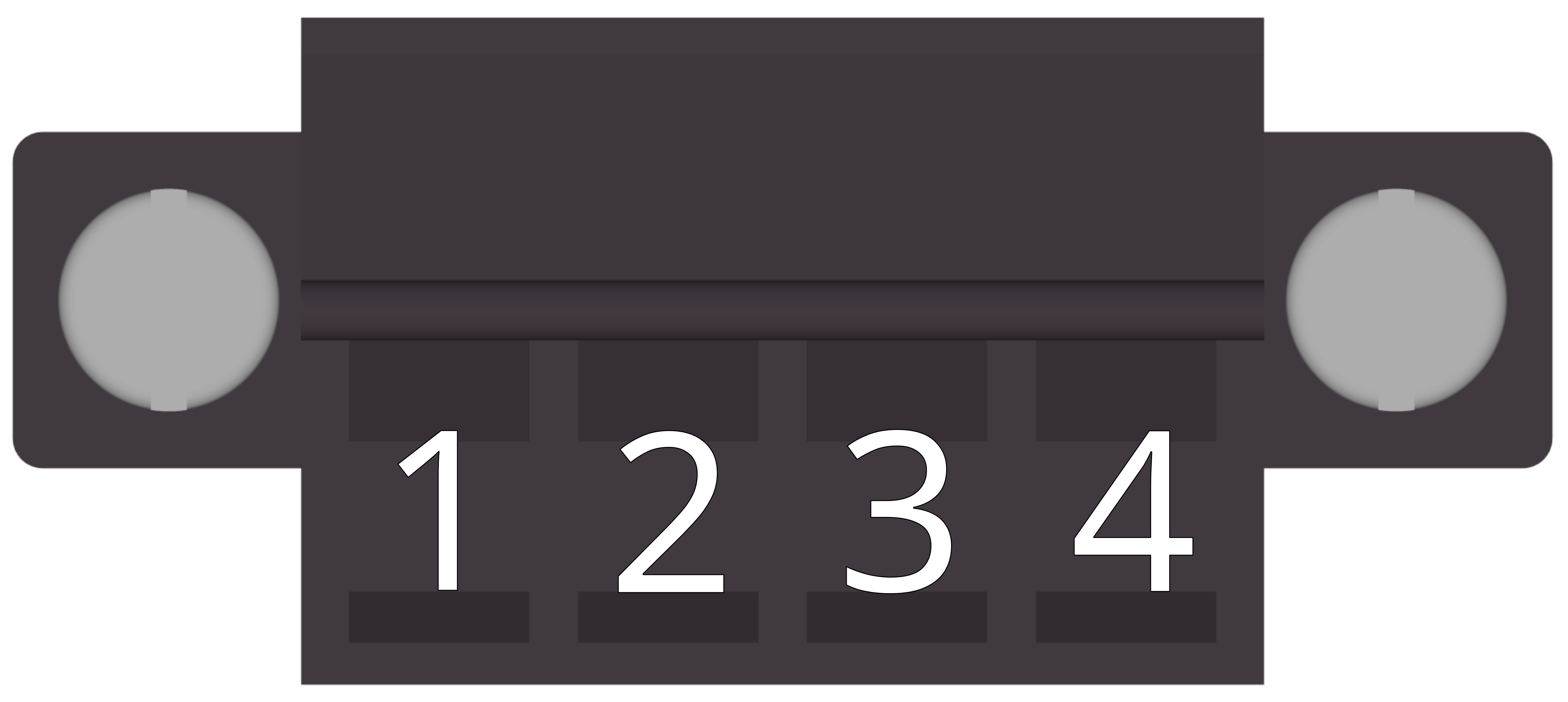

    Front view (TGS side)

    DO2

  • Weidmüller BCZ 3.81/04/180 SN BK BX

    pin # Marking Description AWG
    1 RDY1 signal „Ready“ contact 1 16-24
    2 RDY2 signal „Ready“ contact 2 16-24
    3 ERR1 signal „Error“ contact 1 16-24
    4 ERR2 signal „Error“ contact 2 16-24

  • S1 - Mode select

    DIP switch

  • 4 position DIP switch

    Position Function Description
    SEL1 1st code bit – MSB 1000
    SEL2 2nd code bit 0100
    SEL3 3rd code bit 0010
    SEL4 4th code bit – LSB 0001
    Selected 4 bit. code Meaning – mode
    0000 default
    0001 reserved
    0010 reserved
    0011 reserved
    0100 reserved
    0101 reserved
    0110 reserved
    0111 reserved
    1000 reserved
    1001 reserved
    1010 reserved
    1011 reserved
    1100 reserved
    1101 reserved
    1110 reserved
    1111 reserved

  • LED signalization

    LED

  • LED

    Red LED Number of flashes Description
    short flash 1 Dcbus undervoltage
    short flash 2 Dcbus overvoltage
    short flash 3 Mains error
    short flash 4 internal overtemperature
    short flash 5 softstart overtemperature
    short flash 6 brake resistor overtemperature
    short flash 7 reserved
    short flash 8 reserved
    permanently on - DCbus undervoltage + mains error. Softstart disabled. No other errors.
    Green LED Description
    permanently on device ready, no errors
    permanently off device not ready
