Connector description

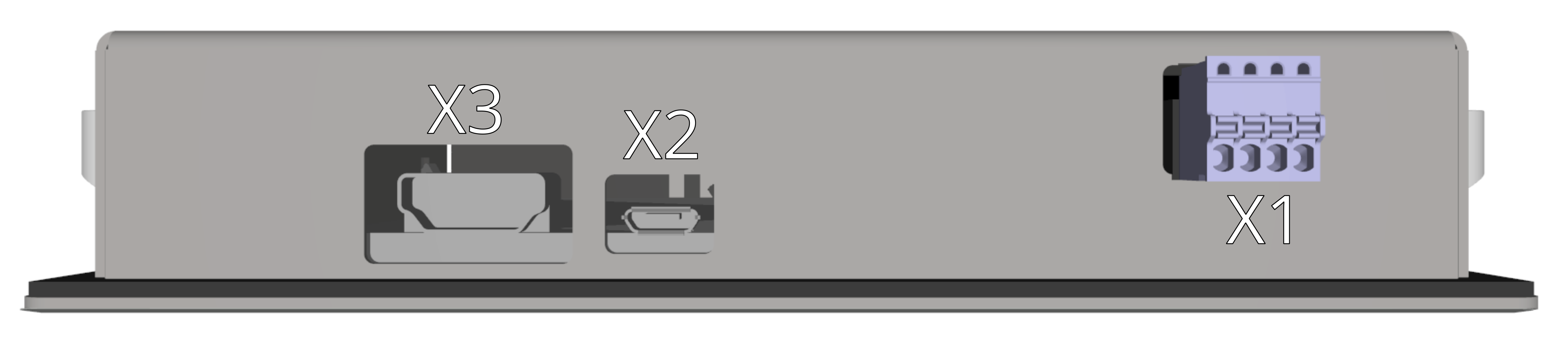

TGMmonitor connectors

  • X1 - 24V power

    24V connector 2439670000

  • Weidmüller BLF 2.50/04/180 SN OR BX

    pin # Marking Description AWG
    1 +PWR 24V 24V PSU input 20-28
    2 +PWR 24V 24V PSU input 20-28
    3 PWRCOM Common input 20-28
    4 PWRCOM Common input 20-28

    USB power

    Although this is an auxiliary power supply, it is strongly recommended to connect it. The device can be powered solely through the X2 - USB connector directly from the TGMmini; however, this unnecessarily loads its internal power supply. When using additional external USB devices connected to the TGMmini, powering the display via the X1 (24VDC) connector is mandatory!

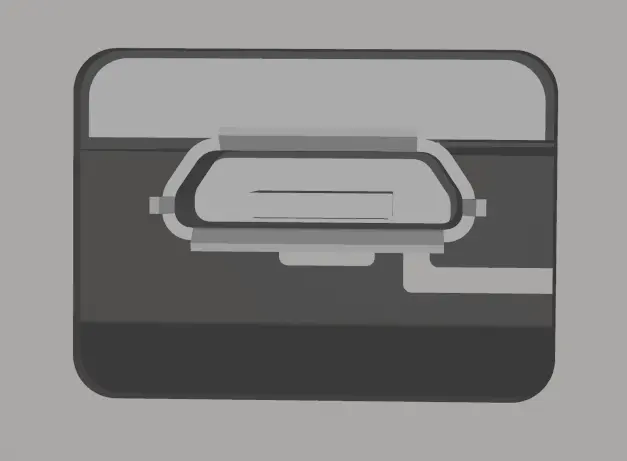

  • X2 - microUSB

    uUSB connector

  • Standard microUSB

    Mandatory connection to the standard USB X6 connector of the TGMmini device to enable LCD touch function.

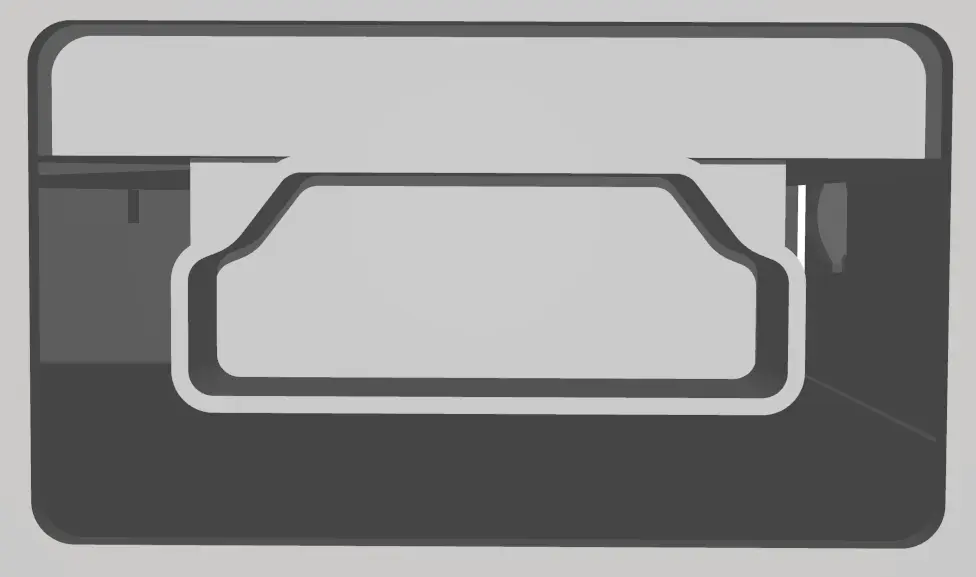

  • X3 - HDMI

    HDMI connector

  • Standard HDMI

    Mandatory connection to the standard HDMI type A X7 connector of the TGMmini device to enable the display. Due to EMI resistance, please use the shortest possible length of HDMI cable necessary. The use of flat HDMI cables is not recommended.
